Ụgbọ njem ụgbọ njem SDCXRB-03A1 / RB06-900 / RB08 / RB08A3-1490 / RB08A3-1700 / RB08A3-1840 / RB10 / RB20 / RB50 / RB130 / RB165/ RB210

Okwu mmeghe nkenke nke ngwaahịa

Ụgbọ njem ụlọ ọrụ ígwè ọrụ na-tumadi-eji na-egweri, polishing, loading na blanking na / si igwe ngwaọrụ, akpaka njem maka stamping akpaka mmepụta ahịrị, wdg The njem robot bụ akpaka ngwaahịa nke na-eji robot si ngagharị track dochie ntuziaka njem.Uru ya bụ na ọ nwere ike rụzuo ụdị ọrụ niile a tụrụ anya ya site na mmemme.Ọ na-ejikọta uru nke ma mmadụ na igwe na nhazi ya na ịrụ ọrụ ya, karịsịa na-etinye ọgụgụ isi na ngbanwe.

KPỌTỤRỤ ANYỊ

Nkọwa ngwaahịa

Mkpado ngwaahịa

Nka nka

Ụdị No.		Ogo nke nnwere onwe	Ụdị ịkwọ ụgbọala	Ibu ibu (kg)	Ndokwa ugboro ugboro ziri ezi (mm)	Oke ngagharị (°)						Ọsọ kacha (°/s)						Oke ike kwere ike (N. m)			Radius nke ngagharị (mm)	Ibu arọ (kg)
Ụdị No.		Ogo nke nnwere onwe	Ụdị ịkwọ ụgbọala	Ibu ibu (kg)	Ndokwa ugboro ugboro ziri ezi (mm)	J1	J2	J3	J4	J5	J6	J1	J2	J3	J4	J5	J6	J4	J5	J6	Radius nke ngagharị (mm)	Ibu arọ (kg)
SDCX-RB03A1		6	AC servo mbanye	3	±0.02	±150	+ 136-51	+ 64-131	±150	±120	±360	375	375	419	600	600	750	9.3	9.3	4.5	562	36
SDX-RB06-900		6	AC servo mbanye	6	±0.03	± 170	+ 135-100	+ 155-110	± 170	± 120	± 360	337.5	270	375	300	375	468	12	10	6	900	60
SDCX-RB08		6	AC servo mbanye	8	±0.05	± 170	+ 120-85	+ 75-155	± 180	± 135	± 360	154	154	154	420	252	620	14	12	7	1389	180

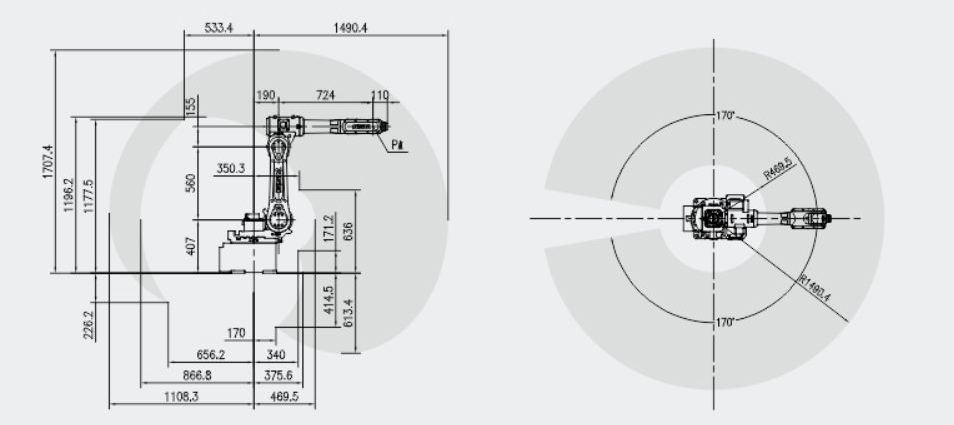

SDCX-RB08A3-1490		6	AC servo mbanye	8	±0.05	± 170	+ 120-85	+ 83-150	± 180	± 135	± 360	200	200	200	400	356	600	14	12	7	1490	185

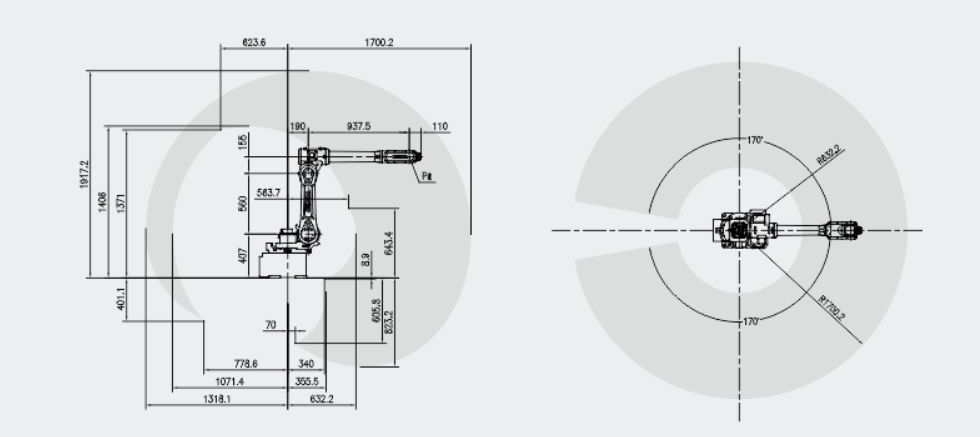

SDCX-RB08A3-1700		6	AC servo mbanye	8	±0.05	± 170	+ 120-85	+ 83-150	± 180	± 135	± 360	180	180	180	400	356	600	14	12	7	1700	187

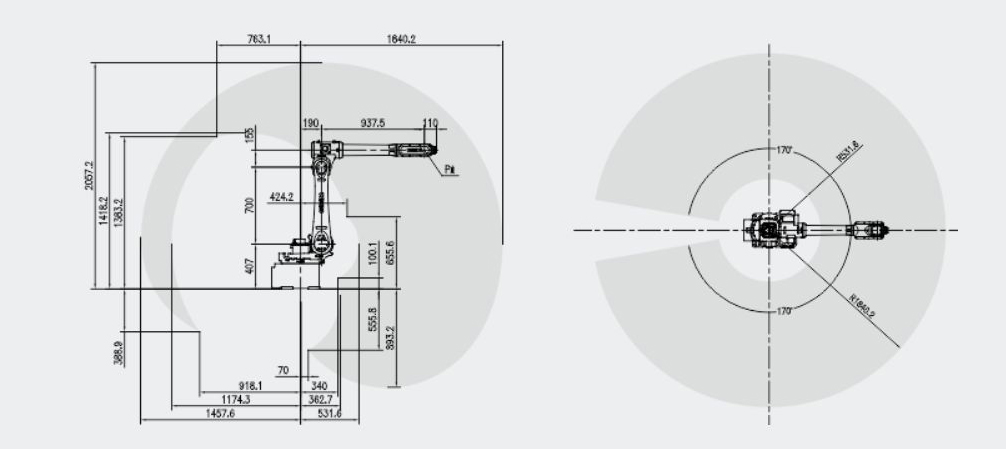

SDCX-RB08A3-1840		6	AC servo mbanye	6	±0.05	± 170	+ 120-85	+ 83-150	± 180	± 135	± 360	160	160	160	400	356	600	14	12	7	1840	180
SDCX-RB10		6	AC servo mbanye	10	±0.05	± 170	+ 150-85	+ 85-170	± 360	± 120	± 360	200	160	200	360	360	600	43.2	43.2	25.4	1550	240
Usoro SDX-RB20	SDX-RB06-2060	6	AC servo mbanye	6	±0.05	± 170	+ 145-100	+ 75-165	± 180	± 135	± 360	165	165	170	300	356	600	40	12	7	2060	285

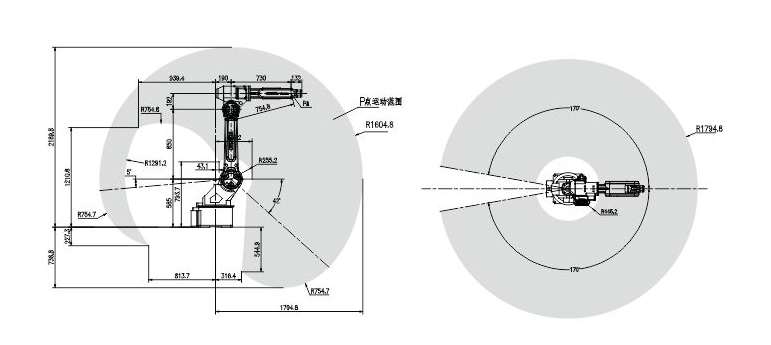

	SDCX-RB15L	6	AC servo mbanye	15	±0.05	± 170	+ 145-100	+ 75-165	± 180	± 133	± 360	165	165	170	300	198	394	40	50	22	1794	300

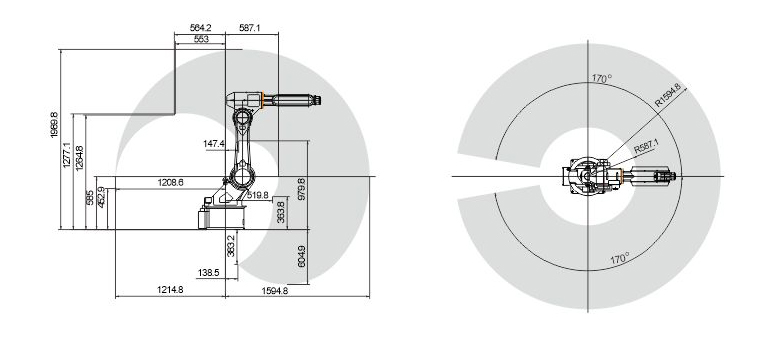

	SDCX-RB20	6	AC servo mbanye	20	±0.05	± 170	+ 132-95	+ 73-163	± 180	± 133	± 360	165	165	170	300	198	394	40	50	22	1595	290
SDCX-RB50		6	AC servo mbanye	50	±0.05	± 178	+ 130-90	+ 75-200	± 360	± 115	± 360	171	171	171	215	251	365	196	196	127	1956	600
SDCX-RB130		6	AC servo mbanye	130	±0.20	± 175	+ 75-60	+ 80-185	± 360	± 115	± 360	100	94	104	165	174	238	951	951	490	2715	1420

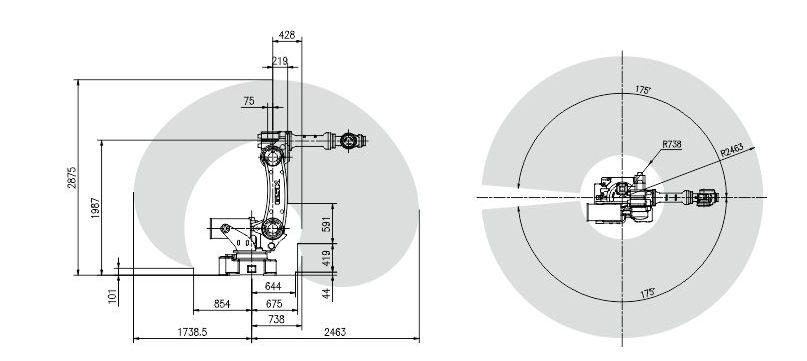

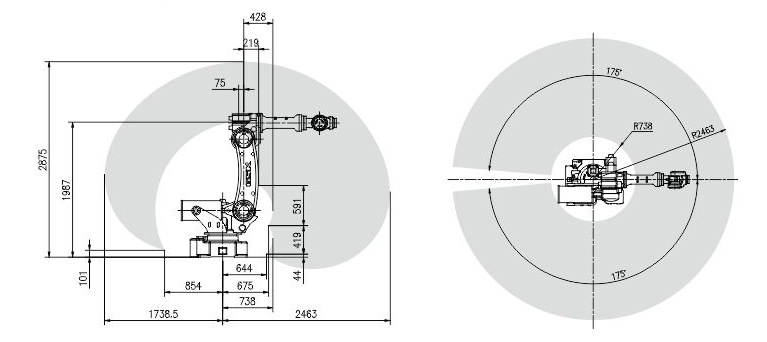

SDCX-RB165		6	AC servo mbanye	165	±0.20	± 175	+ 75-60	+ 80-185	± 360	± 115	± 360	100	94	104	152	160	220	951	951	490	2463	1400
SDCX-RB210		6	AC servo mbanye	210	±0.20	± 175	+ 75-60	+ 80-185	± 360	± 115	± 360	100	94	104	144	118	200	1274	1274	686	2463	1430
SDCX-RB300		6	AC servo mbanye	300	±0.20	± 175	±55	+ 116-85	± 360	± 115	± 360	85	95	95	120	120	180	1274	1274	686	2508	1500

Zere kọntaktị na gas na-ere ọkụ, ihe mgbawa na nke na-emebi emebi na mmiri mmiri;Mee ka a ghara ịfesa ya na mmiri, mmanụ na ájá;Wepụ na isi iyi ụda eletriki (plasma)
